Vandalproof Face Facial Recognition CCTV IP Metal Dome Camera with Latest Face Facial Recognition Technology Solutions
Vandalproof Face Facial Recognition CCTV IP Metal Dome Camera with Latest Face Facial Recognition Technology Solutions
Regular price
$369.75 USD
Regular price
$0.00 USD
Sale price
$369.75 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
|
Product Name
|
AI Smart Face IP Dome Camera
|
|
Model
|
TT-V22MAI
|
|
Highlights
|
Face Capture /Recognition /Comparison /Analysis /Search /White List/Black List, 10000 Faces Storage, TF Card Slot (Max128GB)
|
Major Features
AI Face Snapshot and Comparison,Intelligent Gender Analysis,
Intelligent Age Analysis,
100 Face Snapshots per second
IE Web Page, VMS, Onvif 2.6V, App for IOS & Android
Other AI functions: Human Shape Detection, Abnormal Sound Detection, Motion Detection,
Perimeter Protection, Video Diagnosis, Face White and Black List
Support 2-way Audio, Alarm Linkage, and Door Unlock, Support web cloud website function
Support FTP E-mail Notification, Mipi LCD Driver, Restore, Mask, Network Time Synchronization,
EMMC backup, OEM for Wi-Fi and Motorized Lens Available
Mobile App.: Support max 4 users with 14 languages, Time Zone Set, Image Mirroring, Timing Snapshot,
Alarm Settings (Alarm Message Push to APP or E-mail), View Wi-Fi information, Recording and Storage Setup.
Intelligent Age Analysis,
100 Face Snapshots per second
IE Web Page, VMS, Onvif 2.6V, App for IOS & Android
Other AI functions: Human Shape Detection, Abnormal Sound Detection, Motion Detection,
Perimeter Protection, Video Diagnosis, Face White and Black List
Support 2-way Audio, Alarm Linkage, and Door Unlock, Support web cloud website function
Support FTP E-mail Notification, Mipi LCD Driver, Restore, Mask, Network Time Synchronization,
EMMC backup, OEM for Wi-Fi and Motorized Lens Available
Mobile App.: Support max 4 users with 14 languages, Time Zone Set, Image Mirroring, Timing Snapshot,
Alarm Settings (Alarm Message Push to APP or E-mail), View Wi-Fi information, Recording and Storage Setup.

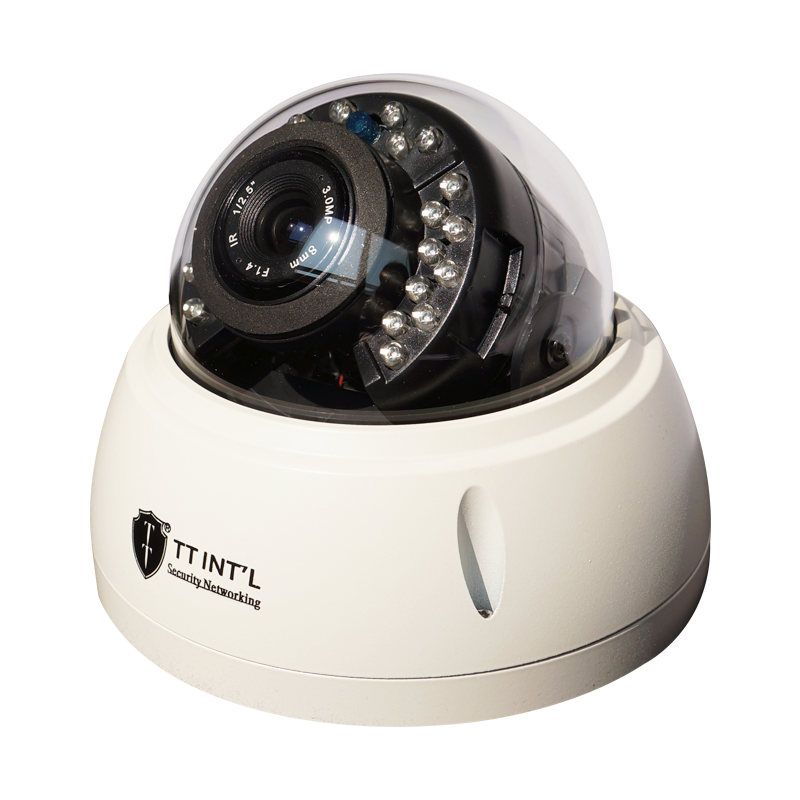

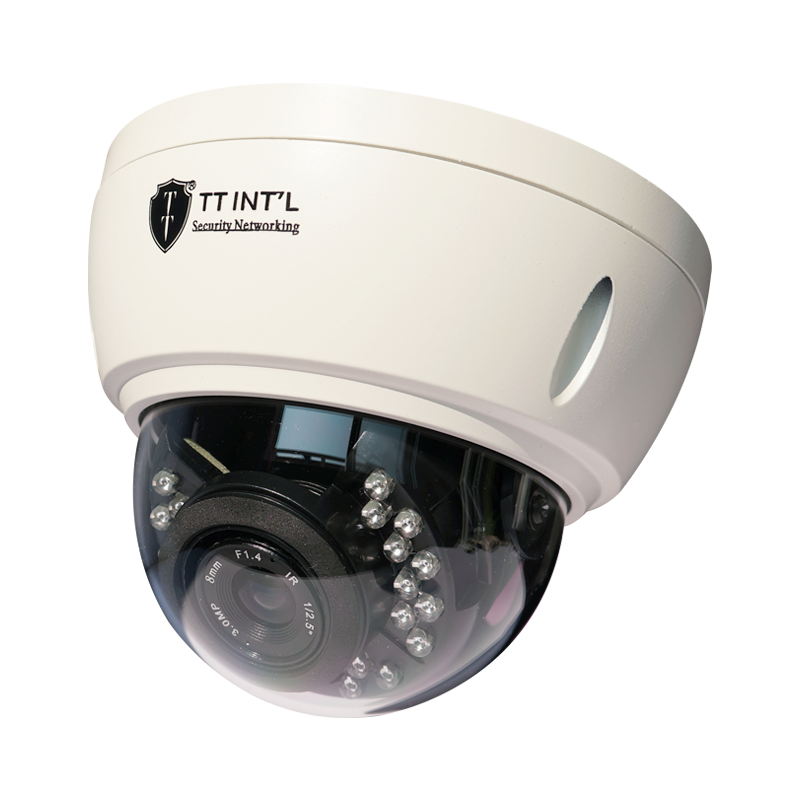

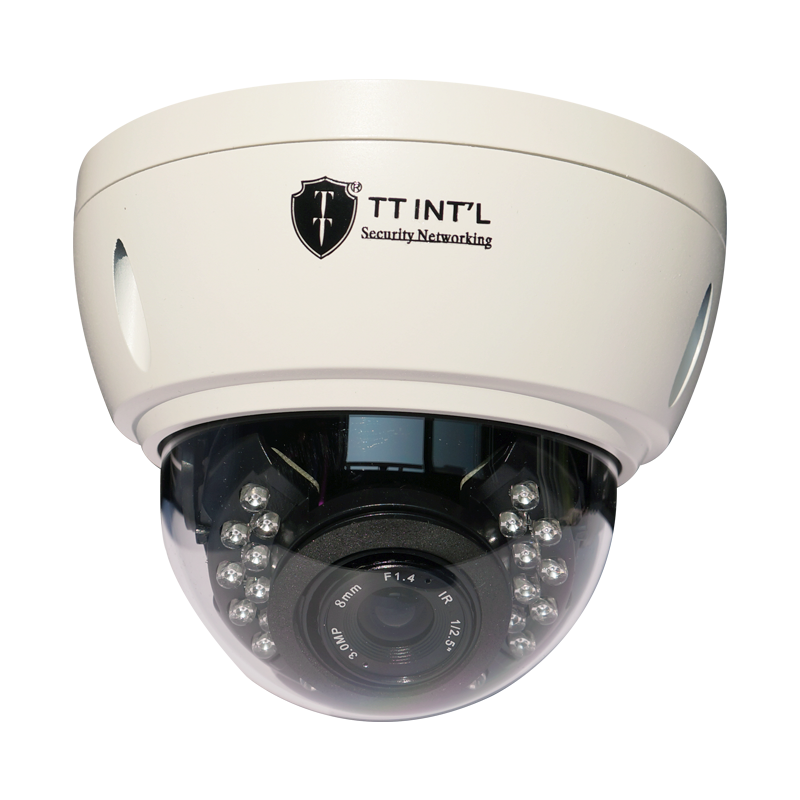

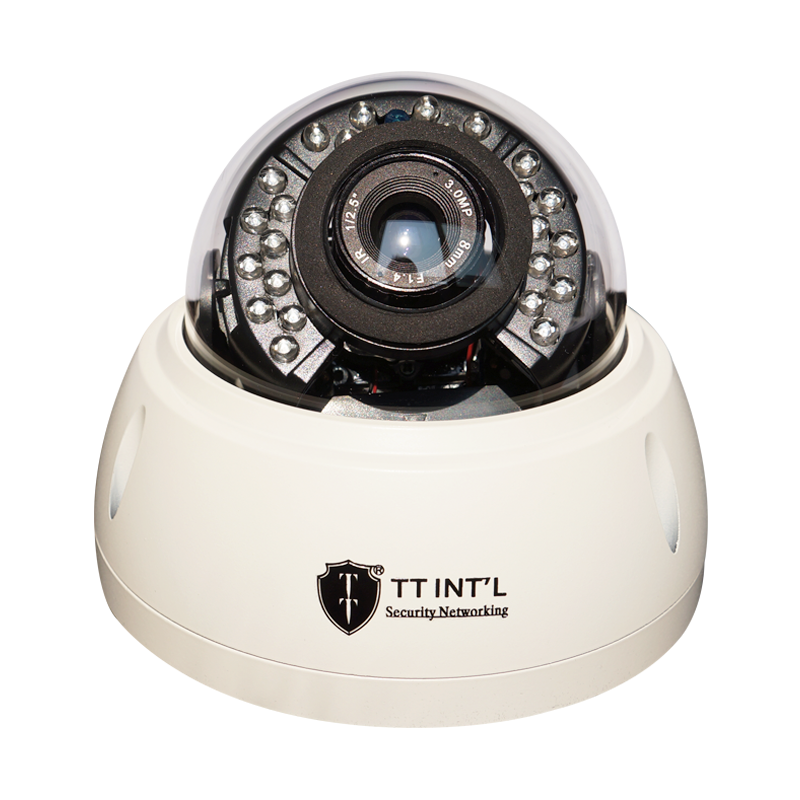

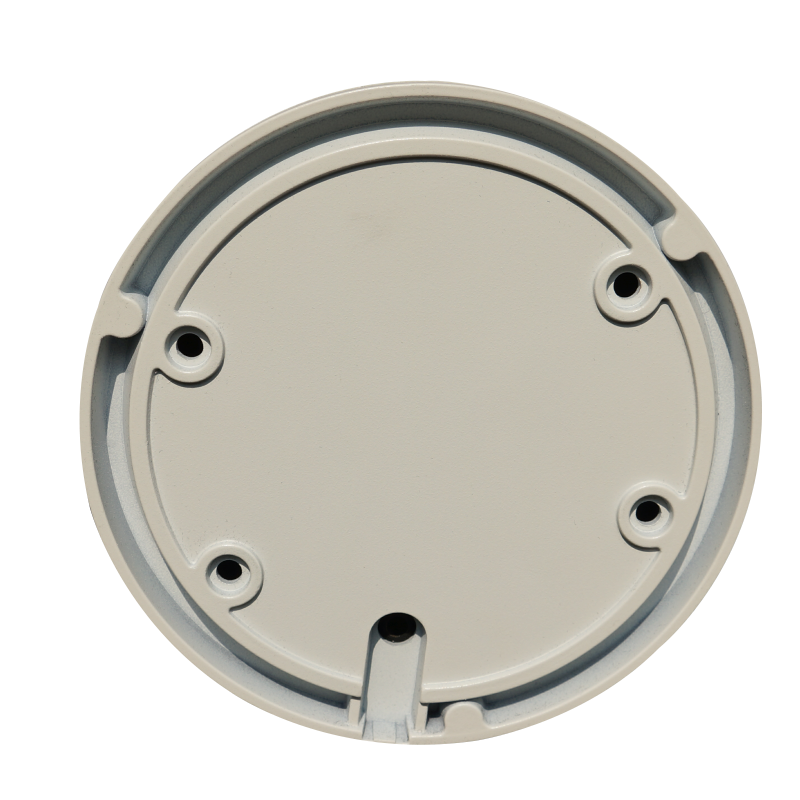

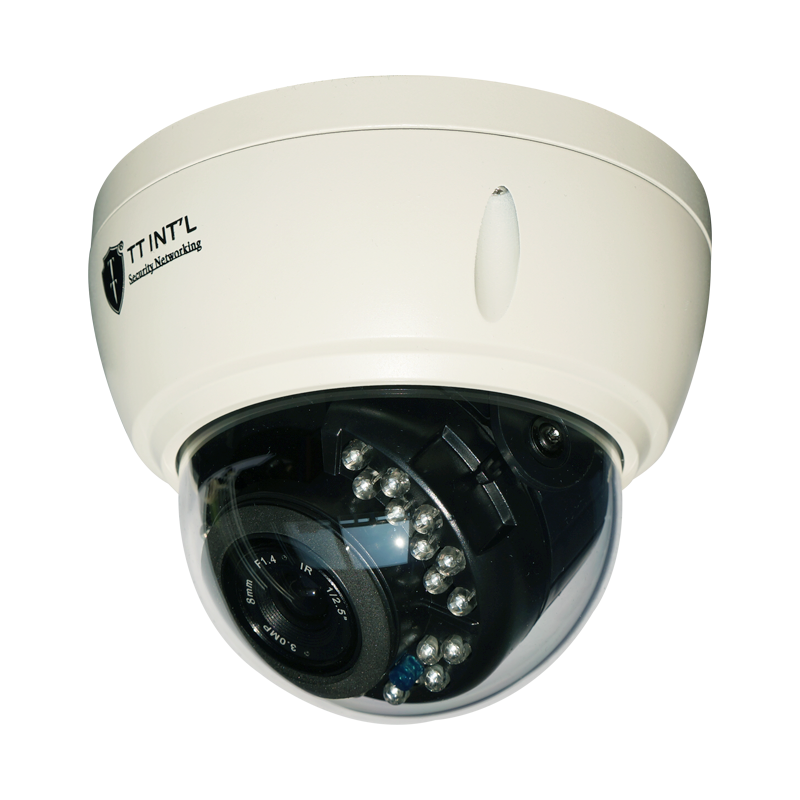

Detailed Images
Product Specifications
|
Model
|
TT-V22MAI
|
||
|
Produce Name
|
AI Face Capturing and Comparison Bullet IP Metal Dome
|
||
|
System
|
Main processing
|
Hi-silicon 3516CV500 (supports 16G / 32G // 64G /128GB EMMC)
|
|
|
Imaging device
|
1/2.8 S0NY IMX327
|
||
|
operating system
|
Embedded LINUX operating system
|
||
|
Human face
|
Snapshot mode
|
Auto mode, fast mode, optimal mode, custom mode
|
|
|
Recognition ability
|
10 ~ 20 frames detection frame rate, up to 32 people per frame; maximum support of 150 people per second
|
||
|
Recognize face size
|
Face pixels 40 * 40-300 * 300
|
||
|
attitude
|
Attitude pitch within 45 degrees, right and left can be captured within 90 degrees, oblique face angle within 45 degrees
|
||
|
Occlusion
|
Ordinary glasses, shorter stay in the sea, masks have no effect on recognition
|
||
|
expression
|
Under normal circumstances, the expression does not affect recognition
|
||
|
Face capture rate
|
≥98% (to meet the above conditions)
|
||
|
responding speed
|
≤200ms
|
||
|
Face to repeat
|
stand by
|
||
|
Face quality filtering
|
stand by
|
||
|
Face dynamic exposure adjustment
|
stand by
|
||
|
Recognition area
|
Full image recognition, support area optional setting, the minimum and maximum pixels for detecting faces can be set, and the
detection area can be set |
||
|
Image Format
|
Support face matting, half body matting, whole body matting
|
||
|
Mobile push information
|
Multiple alarm graphic information
|
||
|
Upload method
|
FTP, SDK call upload
|
||
|
Video
|
Video coding standards
|
H.264/H.265/H.265+
|
|
|
System format
|
PAL 50HZ/NTSC 60HZ
|
||
|
Effective resolution
|
1920*1080/1280*720
|
||
|
Effective Pixels
|
2.0 M pixels
|
||
|
Video frame rate
|
25fps
|
||
|
Video stream
|
128kbps-12288kbps (default variable bit rate)
|
||
|
Signal to noise ratio
|
S / N ratio ≥50dB (auto gain off)
|
||
|
Minimum illumination
|
Day mode 1Lux, night vision mode 0.01Lux
|
||
|
Day and night mode
|
Auto IRC Switch
|
||
|
AWB/BLC/AGC/WDR
|
Support Auto White Balance, Backlight Compensation, Increase Gain, Wide Dynamic
|
||
|
Electronic shutter (AES)
|
AUTO/ 1/50（1/60）-1/100,000sec
|
||
|
Video output
|
VMS Client / Mobile APP Client
|
||
|
Motion Detection
|
stand by
|
||
|
Snapshot function
|
stand by
|
||
|
Infrared
|
24pcs Infrared LEDs.
|
||
|
IR Distance
|
25 meters
|
||
|
Lens
|
6mm Fixed CS Lens
|
||
|
Audio
|
Coding standards
|
G.711U (Optional)
|
|
|
Audio input
|
Passive microphone MIC / active pickup
|
||
|
Audio output
|
External 8Ω / MAX 1.5W speaker
|
||
|
Video management
|
Video mode
|
Manual recording, alarm recording, timing recording
|
|
|
Video save
|
EMMC (full function board) / PC side / NVR
|
||
|
Alarm
|
Alarm input / output
|
stand by
|
|
|
Alarm trigger
|
Motion detection alarm, speaker alarm, alarm recording, snapshot, email, external sound and light alarm
|
||
|
Internet
|
Network protocol
|
HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search
|
|
|
Connection
|
RJ45 network port
|
||
|
Other
|
TF card capacity
|
Optional support for up to 128G, Micro SD (SDHC / SDXC) card local storage
|
|
|
Operating Voltage
|
Standard DC-12V (wide voltage 10-16V)
|
||
|
Working current
|
160mA ±10mA
|
||
|
working environment
|
-10℃ -+60℃
|
||
|
Housing
|
Metal Dome Housing weatherproof and vandal proof
|
||
|
Net Weight
|
1kg
|
||
|
Product Dimension
|
123mm *103mm
|
||
