PoE NVR CCTV Kit 8CH 1080P POE NVR kit IP waterproof camera P2P NVR system Surveillance CCTV support with max 6TB HDD

Kits

Model Type:

POE Surveillance Kit

Model No.

LS-DZ20 POE 8ch kit 2MP

POE Camera

Lens

3.6mm/4mm/6mm/8mm/12mm/16mm

Sensor

1/3"  CMOS

S/N Ration

>47db

Image Pixel/Resolution

1920*1080

Image Compression:

H.264/H265x

View Angle

75.7° -  19.8°

Infrared Distance

20m - 50m

Mini Illumination

0 Lux (IR-Cut)

Day & Night

Automatic IR-Cut

3D-DNR

Auto/BW/Color

OSD

Date Time/Tilt

White Blance

Auto

Stream

Dual Stream: 1280*960@25fps

Internet Interface

1*RJ45 Ethernet Interface, 802.11b/g/n

Power

12V DC/2A (Output), 100-240V AC (Input) , 50-60HZ

Materials

Aluminum Alloy

Waterproof

IP66

Operation Temperature

-25 ℃ - 45 ℃

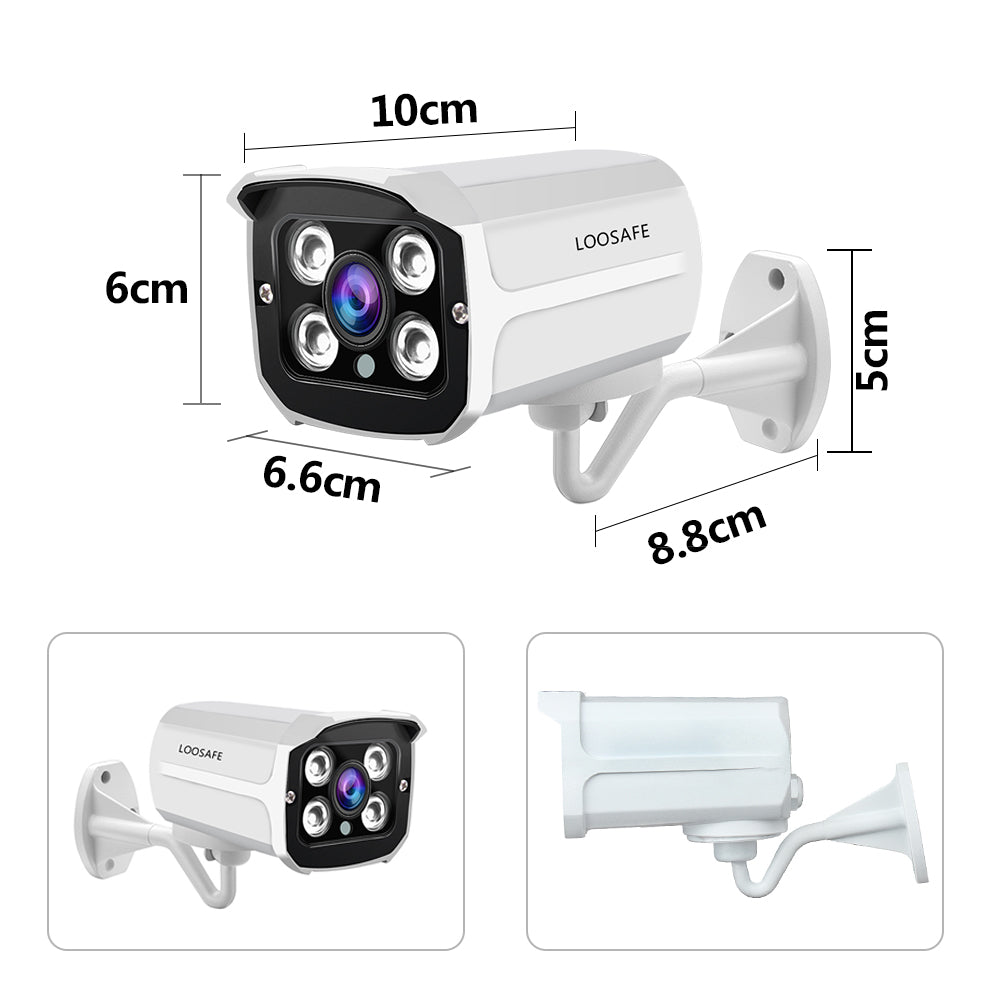

Size

L95*W65*H65mm

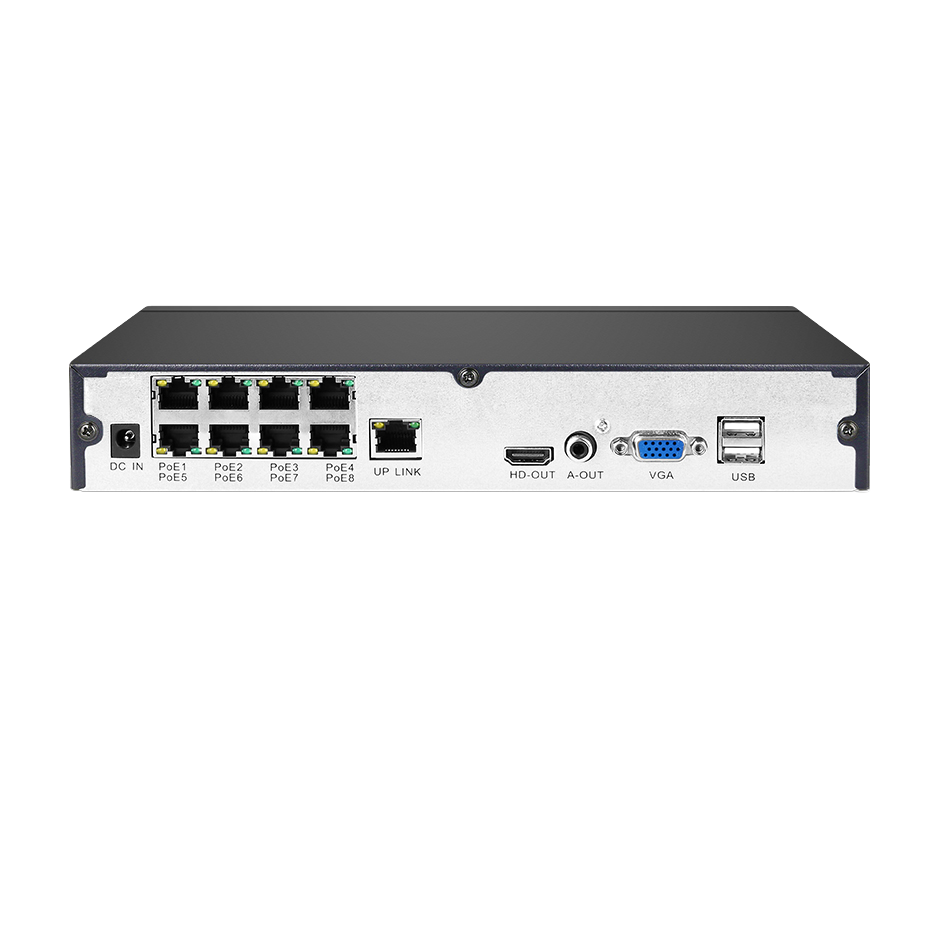

POE NVR

Model No

LS-7504POE

System

Embedded Linux

Video Input

4ch*720P/960P/1080P

Video Output

1*VGA, 1*HDMI

Video Compression:

H.264

Synch-playback

1ch*720P/960P/1080P

Backups

Manual

Storage

1*Max 6TB HDD

Internet Interface

5*RJ45 10M/100M, 4*RJ45 support POE IEEE802.3af/at

USB Interface

2*USB2.0

Onvif Protocal

Yes

Internet Protocal

UPnp, SMTP,PPPoE,DHCP

Power

48V/2.5A

Power Consumption

10W

Operation Temperature

0℃ to 55 ℃

Size

L260*215*50mm
