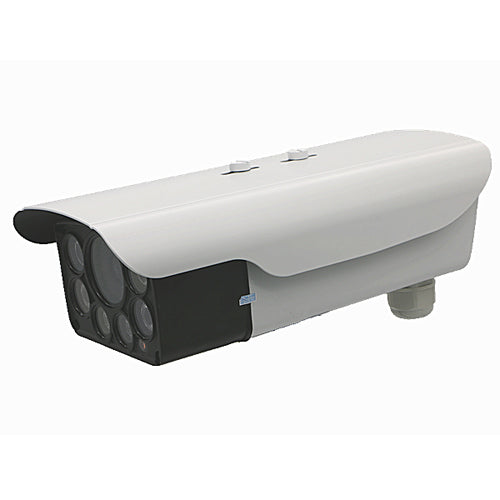

LPR camera car number plate recognition cctv camera
Features:
1 , 1/2.8” 2.1 Megapixels Progressive Scan Sony CMOS.
2, H.264 & MJPEG dual-stream encoding.
3, Max 25/30fps@1080P (1920x1080).
4, Digital WDR (>100db), 2D, 3D noise reduction, AWB, AGC, BLC.
5, Multiple network monitoring: Web viewer, CMS, Smart phone.
6, To switch Day/Night by video detection and time.
7, Micro SD Card Slot (max 64GB).
8, IR-CUT optional.
9, POE optional.
10, Support BNC Video Output.
11, Support 2.4 above.

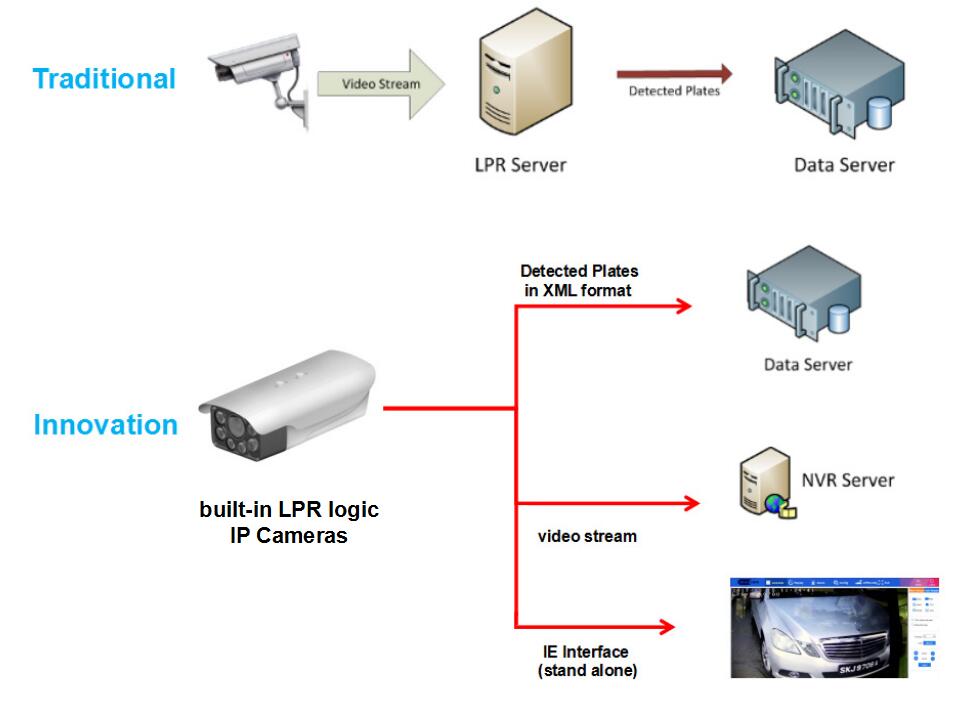

12, Support car plate recognition
| Model |
ICR |
POE |
A/V |
Lens |
||
| B2.921-PRS - AV |
No |
No |
No |
No |
||
| B2.921-PRS -POE-PRS-AV |
No |
Yes |
Yes |
No |
||
| Camera |
||||||
| Image Sensor |
1/2.8” 2.1 megapixels Progressive Scan Sony CMOS |
|||||
| CPU |
HI3516 |
|||||
| Effective Pixels |
1920x1080 |
|||||
| Scanning System |
Progressive |
|||||
| Electronics Shutter Speed |
Auto (1/25,1/30 ~ 1/10000s) |
|||||
| Min. Illumination |
0.05Lux/F1.2 (Color), 0.005Lux/F1.2(B/W); |
|||||
| S/N Ratio |
>50dB |
|||||
| Video Output |
(“-AV” only) 1 Channel BNC (1.0Vp-p,75Ω) |
|||||
| Camera Features |
||||||
| Day/Night Switch |
Auto Color to B/W |
|||||
| Backlight Compensation |
BLC / HLC / WDR (digital) |
|||||
| White Balance |
Auto |
|||||
| Gain Control |
Auto |
|||||
| Noise Reduction |
2D, 3D |
|||||
| Privacy Masking |
Up to 4 Areas |
|||||
| Lens |
||||||
| Lens Type |
C/CS |
|||||
| Video |
||||||
| Compression |
H.264 High Profile, Main Profile, Baseline / MJPEG |
|||||
| Resolution |
1920x1080, 1280x720 ; 960x528, 640x352, 480x256 |
|||||
| Frame Rate |
Preferred Stream |
1920x1080(1~25/30fps), 1280x720 (1~25/30fps) |
||||
| Alternate Stream |
960x528, 640x352, 480x256 (1~25/30fps) |
|||||
| Bit Rate |
32KB ~16Mbps, support VBR, CBR |
|||||
| Audio (“-AV” only) |
||||||
| Compression |
G.711a / G.711U, G.726 |
|||||
| Interface |
1 channel Input, 1 channel Output |
|||||
| Network |
||||||
| Ethernet |
RJ-45 (10/100Base-T) |
|||||
| Protocol |
IPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, |
|||||
| Ver. 2.3 |
||||||
| Max. User Access |
10 users |
|||||
| Smart Phone |
iPhone, iPad, Android, Symbian |
|||||
| Auxiliary Interface |
||||||
| Memory Slot |
Micro SD, Max 64GB |
|||||
| Alarm (“-AV” only) |
1channel Input, 1 channel Output |
|||||
| General |
||||||
| Power Supply |
DC12V, / [POE (802.3af) “- POE” only] |
|||||
| Power Consumption |
≤3W |
|||||
| Working Environment |
-20 °C ~ 60°C |
|||||
| Dimensions |
152mm ×86mm ×56mm |
|||||
| Weight |
0.7KG |
|||||
